Throttle Position Sensor PCB
Your current location is:Home> Product> Throttle Position Sensor PCB
< >

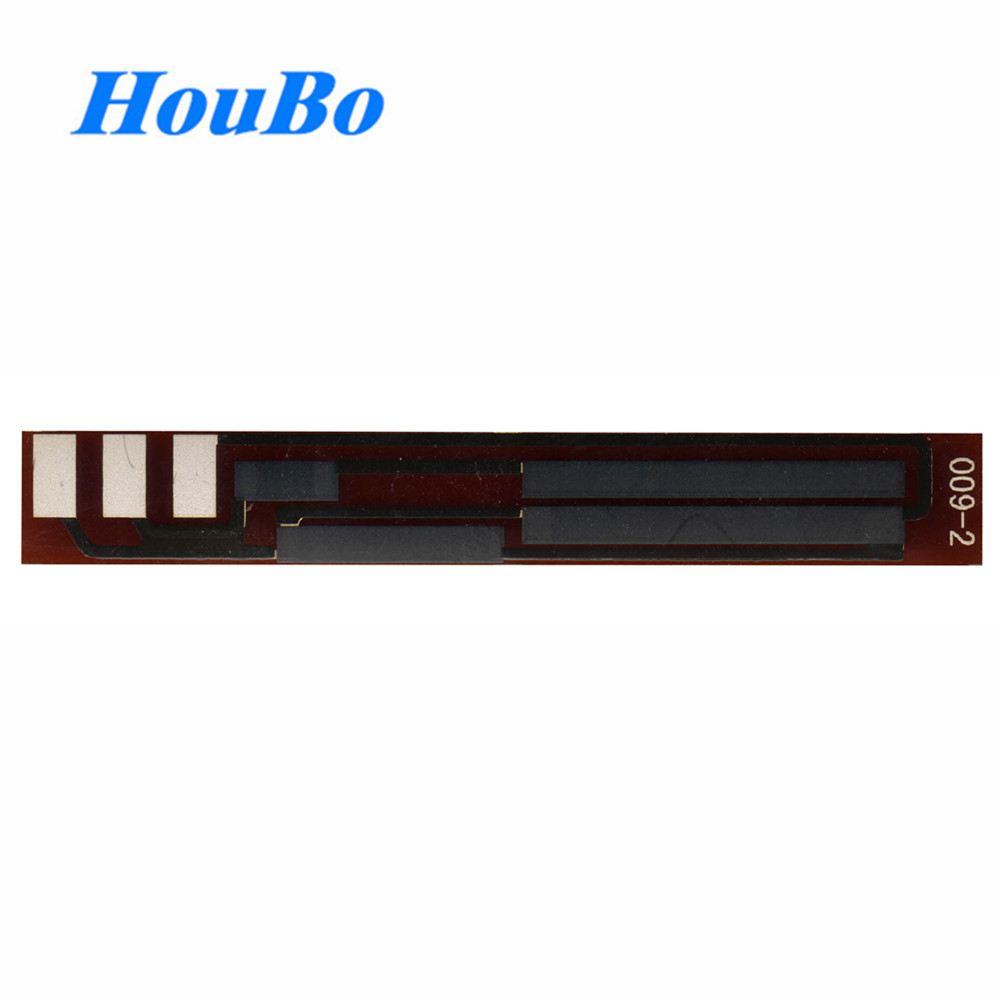

the damper position transducer uses the thick-film circuit-13055A009


product type:Throttle Position Sensor PCB
Specifications：13055A009
contact number: +86 13925432838
contact email: qq347972560@outlook.com
Online message
  • Introduction

Substrate material: polyimide film (0.125-0.3mm thickness can be customized）

Operating temperature range: – 55 ℃~125 ℃

Resistance range: 1 Ω~300M Ω customizable

Resistance accuracy: 20%，10%，5%，1%

Wear resistance: up to 5 million times (contact pressure 0.15 ± 0.05N)

Conductive silver palladium slurry: 2%~30% silver palladium content is selected according to customer requirements
